Best of the Best

Page 15

Gil's 2289

Love the custom parts on this one.

CB breach, custom bolt, custom adjustable stock, vented shroud, 23" crowned barrel (with enlarged port), delrin transfer port, ported valve (with lighter spring), brass adjustable cupseal piston, custom adjustable trigger, stronger hammer spring, brass safety, drill rod pump arm pivot pin (with e-clips), adjustable sear spring, 760 fore arm, American Classic grips, mock suppresser, 16X 40mm scope, Harris pod. 740fps with 20 pumps using rws super point extra (14.5gr) pellets. 22 cal.......



LarryR's 2240

Check out the vent rib that Larry made for his 2240

Looks like a new vsrsion of Crosman Ted Williams 126.1909

Andy in NC's 760 project

That's one nice looking stock

Made some new furniture for my 760 project. Also added a new Leapers scope.
Low budget fun:
$30.00 gun (late model Crosman 760)
$20.00 scope (Leapers 4 x 32 with illuminated milldot reticle)
$1.00 3/8 x 4" iron pipe nipple (muzzle break)
$4.00 3/8 x 2' x2' BC plywood (stocks)

Still less than what I paid for my 1377

Joeairgunman's QB 78 Deluxe

Here's a 40 shot string with a 3000 psi fill shooting Crosman Premiers.
920-918-931-946-948-962-982-987-998-1000-1016-1019-1031-1044-1054-1061-1050-1063-
1062-1063-1065-1074-1070-1067-1059-1059-1043-1040-1029-1007-1004-988-966-959-943- 922-903-889-862-851
The tube was naturally replaced with a longer one that runs 1" short of the barrel with a new barrel strap assembly attached near the muzzle. A new custom made valve was installed and secured on both sides of the tube. It has the typical accuracy of the QB line.
This gun was made for me by Joe Bontrager who asked me before he started what MV range I was looking for. Then he sent shot strings as he was testing the gun so I could decide what I was comfortable with. He also sent pics as he was building it so I could follow what was happening.
Wish I could post some pics but I don't have a camera. Oh yeah, did I say it's got "reverse cocking"?

Rich's 2250

A new long-range sniper

Looks like a new vsrsion of Crosman Ted Williams 126.1909




Rich's 2260

Chrome plated 2260 tube-custom brass co2 end cap with aluminum cartidge rod to save weight by Art-RJ high rise breech. O-ring brass hanlde and extended probe and trigger shoe-work by Roy at M.A.--B&A 12 gram boss valve that is extremely modified-shoulder stock by Gil--13"x1" dia.polished aluminum vented shroud with brass end caps&forearm stock by LarryR-Bushnell Trophy 1x32 red dot sight-custom grips by Rick-BKL dovetail to weaver adaptor for scope-laser and light by gamo-ther ya go!!




Calvin's neat little carbine

Sure is a nice looking gun.

here is a carbine that i threw together over the past couple of days with spare parts and mule gun parts. this one has a 12" .22 lothar walther barrel under a 1" carbon fiber shroud, overall length 31". did not get a chance to put it over the chrony today, but a fill of 2200 psi gives me about 12 shots. i will try to chrony it tomorrow, but by this weekend for sure. it is a 2250 tube with modified 2250 valve, delrin valve stem, secured valve with two 10 x 32 screws, mounted onto a crosman 262 stock, with DAQ .25 breech.
a question for those of you shooting jsb 16 gr. have you noticed any particular velocities that those pellets don't shoot accurately at? my talon is shooting arount 750 fps and doesn't group well with them, and my career shooting at the same velocities also does not group well with them. strangely, this little carbine also does not group well with them either, but my crosman 160 with peeps is awesome with them at 25 yds. maybe i need to try different velocities, but i need to get a new variety of fodder to play with also.






Mig Rod's 1322

all mods done by me, including the camo paint job, very accurate and quiet, hope you like it, feel free to post the pic in your sight.

Rob in NC's 2240 PCP

Shiny! Nice Lam's too

Next up…. And my BABY… is a 2240 PCP by Joe. This gun started out as an AWESOME 2240 built by Art Braden. The gun was perfect, but I am not much of a CO2 guy. Joe made a custom PCP tube, valve, and hammer for it. Bottom line is 20 shots at around 16-18fpe. More if I accept a wider velocity spread. Only thing missing now is a silver trigger shoe from Gil and the package will be PERFECT.





Rob in NC's QB

This one is getting around 30 shots at 22fpe. VERY consistent and very accurate.  the gun was made
by Joe Bontrager. The stock is a Richards Micro Fit stock that Rob
finished....

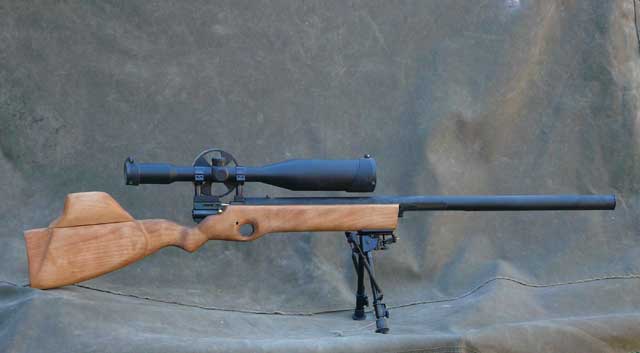

James creation

Check out the stock James made

The shroud is 1 1/8 id.
Crossman 2260 barrel not quite free-floating within it.
Overall length is 49"
The stock was made from one piece of cherry, cut in halves to simplify the inletting.

The internals:
2260 barrel crowned and polished
2260 Tube and extension cap
heavy hammer spring
stock valve spring...
shaped valve stem
poly port
valve trimmed and bored aka: "bio mods"
valve port "flowed"
full length hammer spring guide (8d nail trimmed in length)
trigger, sear and hammer matting surfaces all mirror pollished and lubed.

Others:
DAQ Breach
Leapers 16X50 with AO (Large wheel did not make it to the photo shoot.)
Hacked up B-Square Adjustable high rise mount
The shroud has a 4" removeable section (clipped in) to facilitate cart exchanges)
Harris SLM Bipod latched onto a #2A Stud






Ivan in PR's 1322

The grip are made by Rick and stock is by Gil



Buck's .25 hand cannon

Look at the details that Buck put in to his 2540

It has modded RB grips,Gils safteyRoy did the bbl work on the TTW bbl and modded the exhaust valve and made the flow through bolt,blueforkdesigns brass bbl band,Williams notch rear sight, and Arts most wonderfull custom brake,breech cap,cart cap,and power adjuster.
I test fired it and when it hits 70F outside I will see what I have. But it sounds STRONG!!!....Buck



Sam's 1377

Very nice looking gun.  And some big fish too!

  I just wanted to share my first custom Airgun, a Crosman 1377.  I've attached some photos below.  Here are the specs.


Zebrawood Super Pumper and Stock Insert from Ralph @ RB Grips
Barrel Band, Custom Brake & Bolt, Trigger Spring/Guide and Shoe from Roy @ Mountain Air
Long Breech from Robert @ RJ Machine
Adjustable Cone Piston w/Ported Valve and lighter spring, Brass Safety from Gil
14" Barrel from Jim @ Crooked Barn
Leapers 4x32 Mini AO Bug Buster Scope, Illuminated Red/Green Mil-Dot Reticle, Flip-Open Lens Covers
Accushot 1" Rings

Gun Mounted Ammo Container (GMAC) from Greg Schutte


As you can see....I bought only the best for my first creation.  A special thanks to everyone who helped with this!
