Tom's Daughter 2240 Carbine
|
Tech form self modified valve mods,
2-stage sear trigger mods, Cutters
breech, shortened stock... ash forearm unfinished, I made using a spade bit
to
drill tube hole to slip over the valve tube. I plan on
shaping it a bit more and coloring it. . The stock was
simply cut shorter and refastened with long SS deck screws, the joints
covered with black cord Turks head knots. Scope is 4X Leapers
bugbuster, cabela rings.... 2006. I really like their style. It has a
2250 barrel.. |
|
Tom's 1377 Carbine |
RJ breech (obviously), 1750 barrel, airgunsmith
flat top piston, supersear, knob cocking, my bad because I don't recall
who sold me the super great alum barrel band (ordered bright), I think
the muzzle protector is a Rhino... Bushy AO variable scope w/el cheapo
rings, camo duct tape over gray pipe insulation... very accurate with
CPHs.... 8 pumps typical. |
|

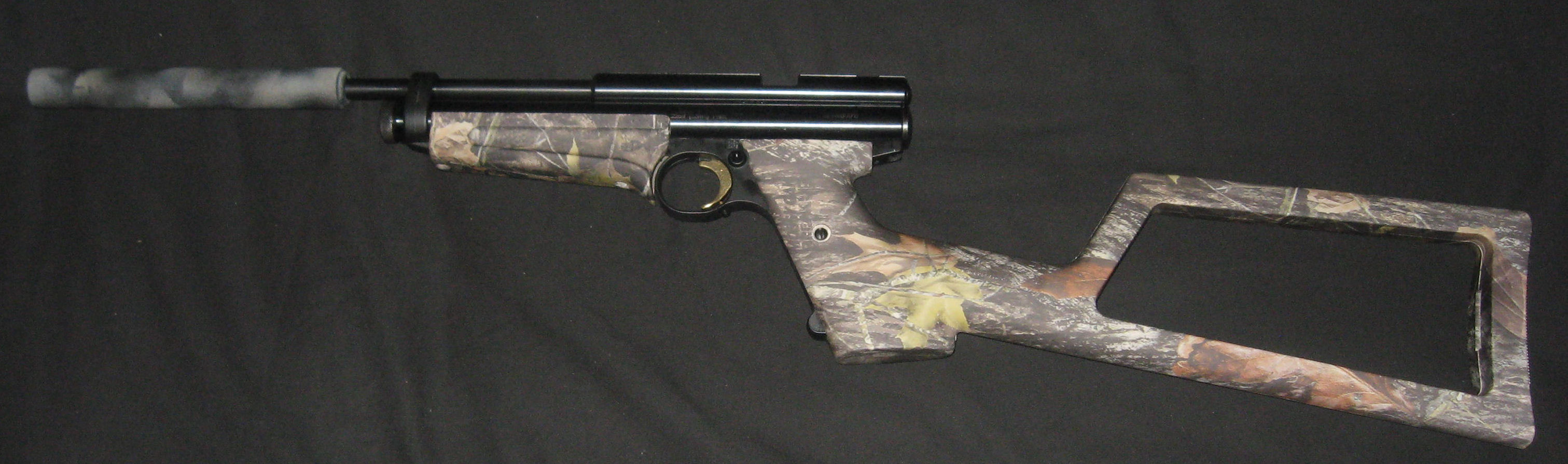

The carbine has a Mountain Air valve
anchored with set screws, Mountain Air hammer spring adjuster, Mac1
14" .22 barrel and bolt, early Crosman breech, HDD from Steve in
NC, Crosman tech forum trigger tune, Uncle Mikes sling swivels, braided
leather sling, muzzle brake from Crooked Barn, paintball shop trigger
shoe, Simmons 4X shotgun scope, and Cabela scope rings. The 1389
forend is mounted with a 2250 barrel band, and the cheek pad is pipe
insulation covered with camo duct tape. I used a 2260 tube
containing 3 stacked powerlets and a 2250 endcap.
|
|
The bright pistol is a 2240 with very early
Cutters alloy breech and bolt, HDD and 2-stage sear from Steve, 12"
.22 barrel, self modified valve and bicycle innertube grip sleeve.
Scope is a BSA 2X handgun scope with Cabela rings.
The dark pistol is a 1740 with RJM short breech and bolt, my homemade
bolt handle and hammer spring adjuster, with self modified valve,
2-stage trigger from Steve, 10" 1377 barrel, bicycle innertube grip
sleeve and BSA 2X handgun scope with Cabela rings.
|
|
|
|
